กรุณาอ่านคู่มืออย่างละเอียดก่อนใช้งานไฟฉาย
♦ ส่วนประกอบ
- ปุ่มกด
- ตัวแสดงระดับแบตเตอรี่
- ฝาท้าย

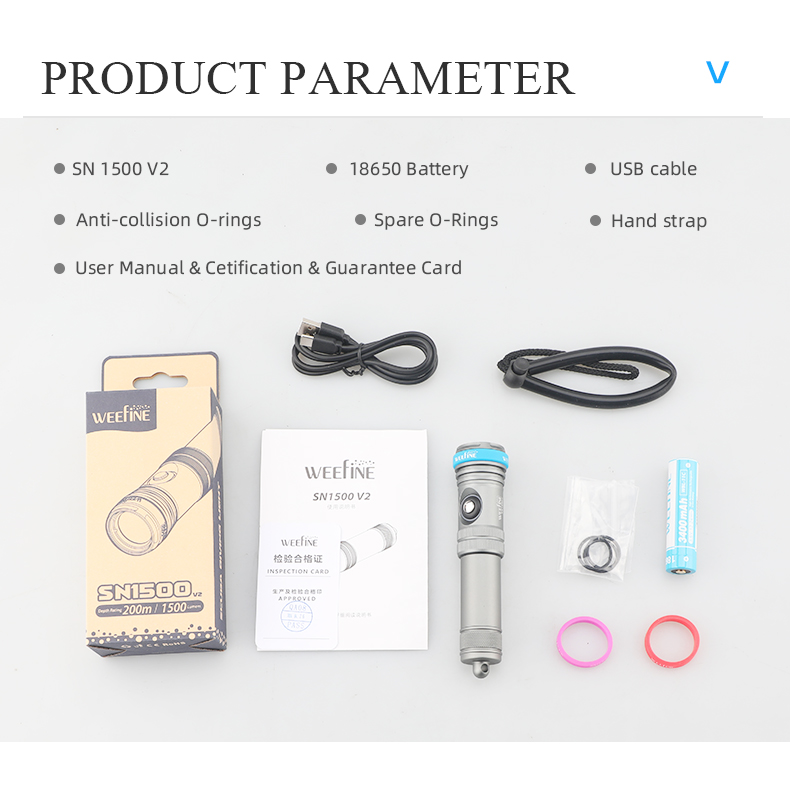

♦ อุปกรณ์ภายในกล่อง

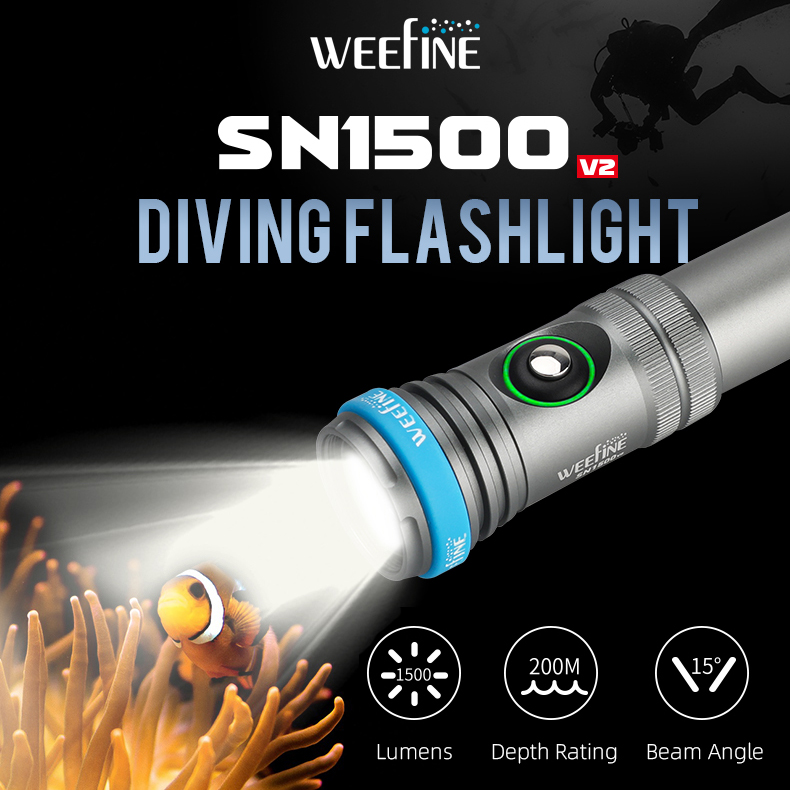

- ไฟฉาย SN1500
- แบตเตอรี่ 18650
- สายชาร์จ USB-C
- สายรัดข้อมือ
- โอริงสำรอง
- โอริงป้องกันการสึกหรอ
♦ รายละเอียด
รายการ | รายละเอียด |
---|---|
ประเภทแบตเตอรี่ | แบตเตอรี่ลิเธียมไอออน 18650 จำนวน 1 ก้อน |
ความสว่าง | 1500 ลูเมน |
โหมดการทำงาน | โหมดสว่างต่อเนื่อง: Full (100%), Medium (50%), Low (25%) โหมดกระพริบ: Strobe, Flashing, SOS |
อุณหภูมิสี (Color Temperature) | 6500K |
มุมลำแสง (Beam Angle) | 15° |
ระยะเวลาการใช้งาน | ประมาณ 100 นาที |
อายุการใช้งานของ LED | มากกว่า 50,000 ชั่วโมง |
ความลึกที่รองรับ | 200 เมตร / 660 ฟุต |
ขนาด | 31 มม. (เส้นผ่านศูนย์กลาง) × 140 มม. (ความยาว) |
น้ำหนัก | 165 กรัม (บนบก), 85 กรัม (ใต้น้ำ) |
★ วิธีใส่แบตเตอรี่
- ใส่ขั้วบวกและขั้วลบของแบตเตอรี่ให้ตรงกับขั้วบวกและขั้วลบบริเวณฝาท้าย ตามรูป
- หมุนฝาท้ายให้แน่นเพื่อปิดไฟฉาย
★ วิธีชาร์จแบตเตอรี่
เชื่อมต่อสายชาร์จ Type-C เข้ากับพอร์ตบนแบตเตอรี่เพื่อทำการชาร์จ
★ วิธีใช้งานไฟฉาย
กดค้าง: กดปุ่มค้างเกิน 1 วินาที
กดสั้น: กดปุ่มน้อยกว่า 1 วินาที
- เปิด (On): กดปุ่มเปิด / ปิดค้างไว้จนไฟติด โดยความสว่างเริ่มต้นคือ 100%
- ปิด (Off): กดปุ่มเปิด / ปิด ไม่กี่วินาทีเพื่อปิดไฟฉาย ไม่ว่าอยู่ในโหมดใด
- เปลี่ยนโหมดความสว่าง: กดปุ่มเปิด / ปิดสั้นๆ เพื่อสลับระหว่างโหมด 100%-50%-20%
- โหมดไฟกระพริบ: เมื่ออยู่ในสถานะปิดไฟ กดปุ่มค้างจนเข้าสู่โหมดไฟกระพริบ
- เปลี่ยนโหมดไฟกระพริบ: เมื่ออยู่ในโหมดไฟกระพริบแล้ว ให้กดปุ่มสั้นๆ เพื่อสลับระหว่างโหมด frequent flashing, SOS flashing และ rapid flashing
♦ การป้องกันความร้อนสูงเกิน
เมื่ออุณหภูมิในไฟฉายสูงเกินไป ไฟฉายจะลดความสว่างอัตโนมัติเพื่อลดความร้อน
เมื่ออุณหภูมิลดลง ไฟฉายจะกลับสู่ความสว่างเดิมโดยอัตโนมัติ
ระหว่างการป้องกันความร้อน อาจมีการดับเกิดขึ้นได้
สถานะไฟ LED | ความจุแบตเตอรี่ |
สีฟ้า | >70% |
สีเขียว | >30% |
สีแดง | >10% |
สีแดงกระพริบ | แบตใกล้หมด จะปิดภายใน 10 นาที |
♦ การป้องกันแบตเตอรี่
- เมื่อแบตเตอรี่เหลือน้อย ไฟฉายจะลดระดับความสว่างโดยอัตโนมัติเพื่อประหยัดพลังงาน
- เมื่อแบตเตอรี่หมด ไฟฉายจะปิดเอง
♦ การดูแลรักษาทั่วไป
- ล้างไฟฉายในน้ำจืด 30 นาทีหลังการดำน้ำ
- เก็บไฟฉายไว้ที่ระดับแบตเตอรี่ 70% หากไม่ได้ใช้เป็นเวลานาน
- ชาร์จและใช้งานแบตเตอรี่ทุกๆ 6 เดือน
- ตรวจสอบโอริงก่อนใช้งานว่าไม่มีความเสียหายหรือสิ่งสกปรก
- ใช้ซิลิโคนหล่อลื่นกับโอริงเป็นประจำ
- หากโอริงชำรุดหรือเสื่อมสภาพให้เปลี่ยนใหม่ทันที
♦ คำเตือน
- ห้ามเปิดฝาท้ายขณะที่ไฟฉายอยู่ในน้ำ
- ห้ามส่องไฟเข้าตาโดยตรง
- ห้ามชาร์จไฟฉายด้วยมือที่เปียก
- ใช้แบตเตอรี่จากผู้ผลิตเท่านั้น
- หากไม่ใช้งานไฟฉายเป็นเวลานาน ให้ถอดแบตเตอรี่ออก
- ห้ามถอดหรือซ่อมเอง ควรติดต่อตัวแทนจำหน่าย
USER MANUAL
Please read the manually carefully before using the light
♦ Components
- Button
- Battery Level Indicator
- Tail Cap
♦ Parts
- SN 1500
- 18650 Battery
- Type-C Cable
- Hand strap
- Spare O-Rings
- Anti-collision O-rings
♦ Specifications
- Type of Battery : 1 * 18650 Li-ion battery
- Brightness : 1500 Lumens
- Six function modes : Continuous light modes: Full brightness (100%), Medium brightness (50%), Low brightness (25%)
Intermittent light modes: Strobe, Flashing, SOS - Color Temperature: 6500 K
- Beam Angle : 15°
- Burn time : Approx. 100 minutes
- LED Life : Over 50,000 hours
- Depth Rating : 200m / 660ft
- Size : 31mm (D) * 140mm (L)
- Weight : 165g (On land); 85g (underwater)
★ To install the battery
- Refer to the fig below, make sure to align the positive and negative ends of the battery with the positive and negative terminals on the tail.
- Connect and tighten the tail cap to the flashlight.
★ To charge the battery
Connect the accessory Type-charging cable to the USB-C port on the battery for charging
★ To operate the light
Long-time pressing: Press the button exceeding one second.
Short-time pressing: Press the button less than one second.
- On: To turn the light on by continuously pushing the On/Off button and the default brightness is fully 100%.
- Off: To turn the flashlight off in any condition by pressing On/Off button for a few seconds.
- Brightness mode switch: Push the On/Off button to switch between brightness modes, 100%-50%-20%.
- Intermittent mode: In the Off mode, keep pressing continuously the button until it turns to the intermittent mode.
- Intermittent mode switch: In the intermittent mode, shortly press the button to switch to frequent flashing, SOS flashing and rapid flashing.
♦ Over-heat protection
When the inner temperature of flashlight becomes too high the flashlight will automatically decrease the brightness of the light and reduce the heat. When it goes down to the safe state, it will turn to the previous brightness. During the protection, it can only be turned off.
State | Capacity |
---|---|
Blue | >70% |
Green | >30% |
Red | >10% |
Red flashing | Low power; will turn off after 10min |
♦ Battery protection
When the battery level is low, the flashlight will automatically adjust the brightness (lower) to conserve power. When the battery is empty the flashlight will power-off.
♦ General Maintenance
- Put the torch in the fresh water for 30mins before diving.
- Keep 70% of power capacity if the battery is not used for a long time.
- Charge and discharge the battery every 6 months.
- Check the O-ring before diving to avoid the damage, crack, hardness, dirtiness etc.
- Use silicone to keep the O-rings well lubricated.
- If the O-ring is damaged, broken or deformed it should be replaced with the spare.
♦ Warnings
✳ Do not open the tail cap when the torch is in the water.
✳ Do not shine the light directly into your eyes or another person’s eyes.
✳ Do not touch the battery or the charger with wet hands.
✳ Only use the manufacturer’s battery and charger with this system.
✳ If the torch will not be used for a long period of time, the battery should be removed.
✳ Do not disassemble and maintain the torch, battery and charger personally. Please contact the local dealer.
