ภาพรวม
ไฟฉายดำน้ำ NR-1000 มีโครงสร้างเป็นโลหะ พร้อมหลอด LED ที่ให้ความสว่าง 1000 ลูเมน
ส่วนประกอบ
- แบตเตอรี่
- ไฟแสดงระดับแบตเตอรี่
- ฝาท้าย
- ส่วนหัวของไฟฉาย
- สวิตช์เปิด/ปิด
- รูสำหรับคล้องสายคล้องข้อมือ
ไฟฉายนี้ให้ความสว่างสูงเมื่อเทียบกับขนาดที่เล็ก และมีความเสี่ยงต่ำต่อการเกิดความร้อนสูงเกินไป (มีระบบป้องกันความร้อน)
ไฟแสดงระดับแบตเตอรี่
- ไฟสีฟ้า: แบตเตอรี่เต็ม
- ไฟสีเขียว: แบตเตอรี่ประมาณ 50%
- ไฟสีแดง: แบตเตอรี่ต่ำ
- ไฟสีแดงกระพริบ: แบตเตอรี่ใกล้หมด
การประหยัดพลังงานของแบตเตอรี่
เมื่อแบตเตอรี่เหลือน้อย ไฟฉายจะปรับความสว่างลงเหลือ 10% โดยอัตโนมัติเพื่อประหยัดพลังงานที่เหลืออยู่
รายการอุปกรณ์
- ไฟฉาย
- สาย Micro USB
- แบตเตอรี่ 18650 พร้อมช่องชาร์จ USB Type-C
- โอริง 2 ชิ้น
- สายคล้องข้อมือสีดำ
รายละเอียด
รายการ | รายละเอียด |
---|---|
ประเภทแบตเตอรี่ | แบตเตอรี่ลิเธียมไออน 18650 (3400mAh) พร้อมช่องชาร์จ Micro USB |
ความสว่าง | 1000 ลูเมน |
โหมดสว่างต่อเนื่อง | ความสว่างสูงสุด (100%), ความสว่างปานกลาง (50%), ความสว่างต่ำ (25%) |
โหมดไฟกะพริบ | Blink / SOS / Strobe |
อุณหภูมิสี | 6500–7000K |
มุมลำแสง | 15° |
ระยะเวลาการใช้งาน (ต่อเนื่อง) | 100 นาที ที่กำลังไฟสูงสุด |
อายุการใช้งานของ LED | มากกว่า 50,000 ชั่วโมง |
ระดับความลึกที่รองรับ | 100 เมตร / 330 ฟุต |
ขนาด | 30.5 มม. (เส้นผ่านศูนย์กลาง) × 140 มม. (ความยาว) |
น้ำหนัก | 165 กรัม |
การเปิด-ปิดไฟฉาย
เปิด: หมุนฝาท้ายตามเข็มนาฬิกาให้แน่น จากนั้นกดปุ่มเปิด/ปิดค้างไว้ 1 วินาที ไฟจะเริ่มที่ความสว่าง 100%
ปิด: กดปุ่มเปิด/ปิดค้างไว้ 2 วินาที
การปรับระดับความสว่าง
เมื่อไฟฉายเปิดอยู่ กดปุ่มเปิด/ปิดแล้วปล่อยทันทีเพื่อสลับระหว่างระดับความสว่าง 100% / 50% / 25%
โหมด SOS
เมื่อไฟฉายปิดอยู่ กดปุ่มเปิด/ปิดค้างไว้ 3 วินาที
สลับโหมด: เมื่ออยู่ในโหมด SOS กดปุ่มเปิด/ปิดแล้วปล่อยทันทีเพื่อสลับระหว่างโหมดกระพริบ / SOS / สโตรบ
ปิดโหมด SOS: เมื่ออยู่ในโหมด SOS กดปุ่มเปิด/ปิดค้างไว้ 2 วินาที
การติดตั้งแบตเตอรี่
- หมุนฝาท้ายทวนเข็มนาฬิกาเพื่อเปิด
- ใส่แบตเตอรี่ลิเธียม 18650 ลงในฝาท้าย โดยให้ขั้วบวกและขั้วลบตรงกับสัญลักษณ์ที่ระบุไว้ภายในฝาท้าย
- หมุนฝาท้ายตามเข็มนาฬิกาเพื่อปิด
การชาร์จแบตเตอรี่
- เชื่อมต่อสาย USB Type-C เข้ากับช่องเสียบบนแบตเตอรี่
- ใช้แหล่งจ่ายไฟ USB (5V สูงสุด 2A)
- ขณะเริ่มชาร์จ ไฟแสดงสถานะบนแบตเตอรี่จะเป็น สีแดง
- เมื่อชาร์จเต็ม ไฟแสดงสถานะจะเปลี่ยนเป็น สีฟ้า
การป้องกันความร้อนสูงเกินไป
เมื่ออุณหภูมิภายในไฟฉายสูงเกินไป ไฟฉายจะลดความสว่างโดยอัตโนมัติ
การแสดงระดับแบตเตอรี่
มีไฟแสดงสถานะ 4 สีเพื่อบอกระดับพลังงานที่เหลืออยู่ในแบตเตอรี่
ไฟสีฟ้า: แบตเตอรี่เต็ม
ไฟสีเขียว: แบตเตอรี่ประมาณ 50%
ไฟสีแดง: แบตเตอรี่ต่ำ
ไฟสีแดงกระพริบ: แบตเตอรี่ใกล้หมด
ไม่มีไฟขึ้น: แบตเตอรี่หมด และไฟฉายจะปิดเอง
การประหยัดพลังงานของแบตเตอรี่
เมื่อระดับแบตเตอรี่ต่ำ ไฟฉายจะปรับความสว่างลงโดยอัตโนมัติเพื่อประหยัดพลังงาน เมื่อแบตเตอรี่หมด ไฟฉายจะปิดเอง
การดูแลรักษาทั่วไป
- มีโอริง 2 ชิ้นที่ฝาท้าย ควรใช้ซิลิโคนหล่อลื่นเพื่อรักษาสภาพของโอริง
- หากไม่ได้ใช้งานไฟฉายเป็นเวลานาน หรือโอริงแข็ง ควรหล่อลื่นโอริง
- หากโอริงเสียหาย แตก หรือเสียรูป ควรเปลี่ยนด้วยโอริงสำรอง
หมายเหตุ: อย่าใช้เครื่องมือแหลมในการถอดโอริง
คำเตือน
- ใช้แบตเตอรี่ลิเธียม 18650 ที่ผู้ผลิตให้มาเท่านั้น
- ห้ามเปิดฝาท้ายขณะไฟฉายอยู่ในน้ำ
- หากไม่ได้ใช้งานไฟฉายเป็นเวลานาน ควรถอดแบตเตอรี่ออก
การไม่ปฏิบัติตามคำเตือนดังกล่าวอาจทำให้ไฟฉายเกิดความเสียหาย ทำให้การรับประกันเป็นโมฆะ
การรับประกัน
- Kraken รับประกันความบกพร่องจากการผลิตเป็นเวลา 1 ปีนับจากวันที่ซื้อ
- หากพบความบกพร่องจากการผลิตภายใน 15 วันนับจากวันที่ซื้อ สามารถเปลี่ยนสินค้าได้ที่ตัวแทนจำหน่าย
- ความบกพร่องจากการผลิตที่เกิดขึ้นภายใน 1 ปีนับจากวันที่ซื้อ จะได้รับการซ่อมแซมโดยไม่มีค่าใช้จ่าย
- ต้องแสดงหลักฐานการซื้อเพื่อรับบริการรับประกัน
- การรับประกันไม่ครอบคลุมความเสียหายหรือความบกพร่องที่เกิดจากการใช้งานผิดวิธี (เช่น การดัดแปลง ความเสียหาย) ภัยธรรมชาติ หรือปัญหาเกี่ยวกับแบตเตอรี่ รวมถึงการติดตั้งแบตเตอรี่ไม่ถูกต้อง
การแก้ไขปัญหาเบื้องต้น
ก่อนส่งไฟฉายกลับไปยังตัวแทนจำหน่าย โปรดลองวิธีต่อไปนี้
อาการ | วิธีแก้ไข |
---|---|
ไฟฉายไม่ทำงาน | ตรวจสอบว่าแบตเตอรี่ใส่ถูกด้านหรือไม่ ตรวจสอบว่าแบตเตอรี่มีประจุหรือไม่ ตรวจสอบว่าฝาท้ายปิดแน่นหรือไม่ |
น้ำรั่วเข้าไฟฉาย | ตรวจสอบโอริงในฝาท้ายว่าไม่มีความเสียหาย และไม่มีสิ่งสกปรกที่อาจทำให้ฝาปิดได้ไม่สนิท |
◆ Overview

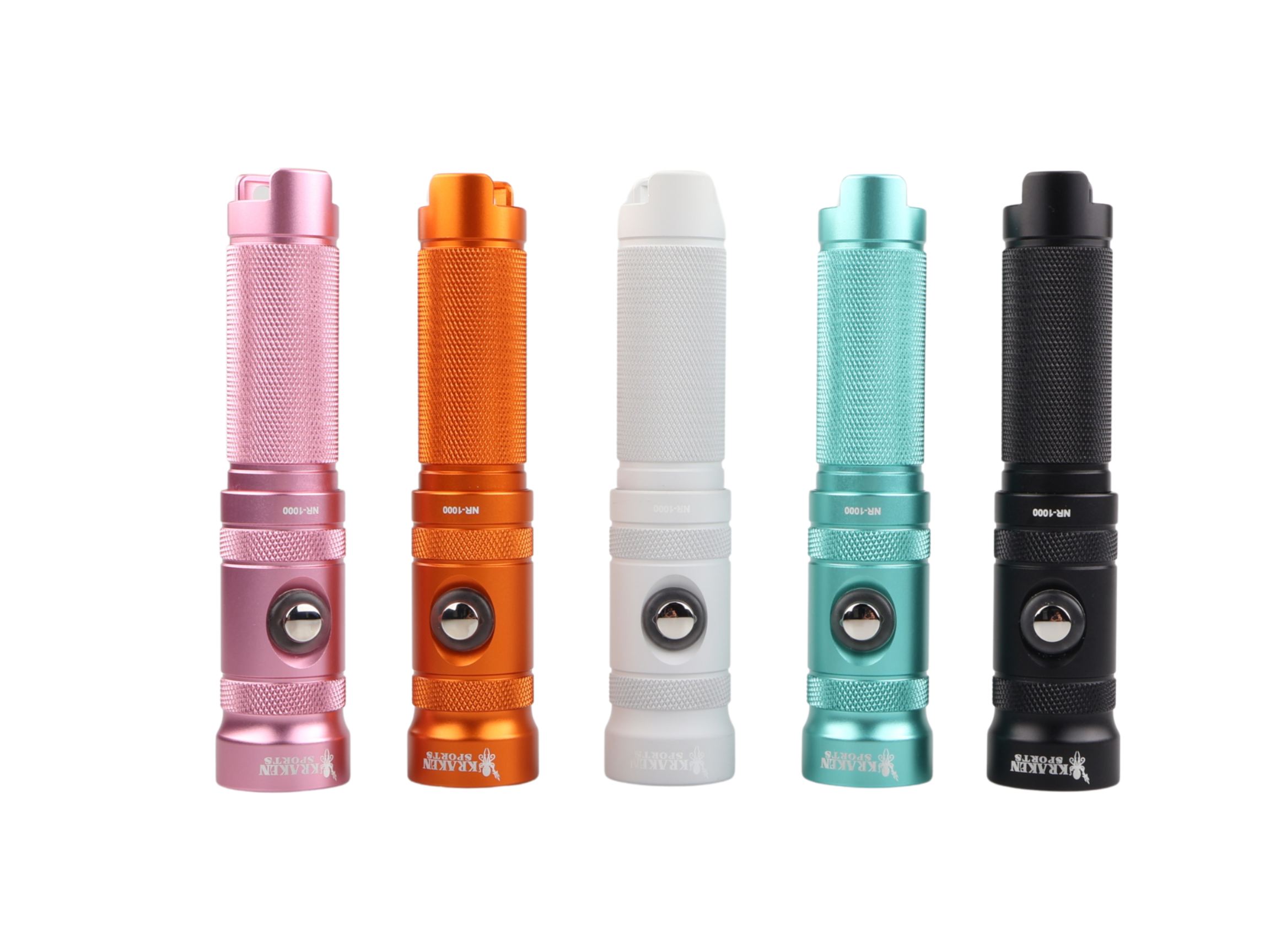

The NR-1000 is a metal bodied diving flash light with LED (1000 lumens).

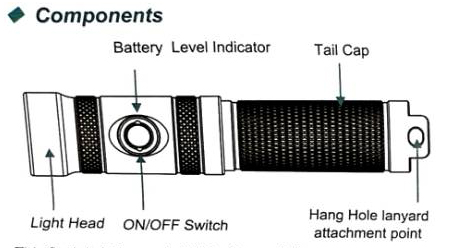

◆ Components
Battery | Level Indicator | Tail Cap
Light Head | ON/OFF Switch | Hang Hole lanyard attachment point
This flash light is very bright for its small size.
Low risk of flash light over heating (thermally protected).
Battery level indicator:
- Blue (Full)
- Green light (50% charged)
- Red light (Battery low)
- Flashing red light (Battery very low)
Battery stretch: When the battery is low, the flash light will automatically adjust the brightness to 10% in order to conserve the remaining power.
Easy on-off: The flash light is operated with a single push button located in the middle of the head.

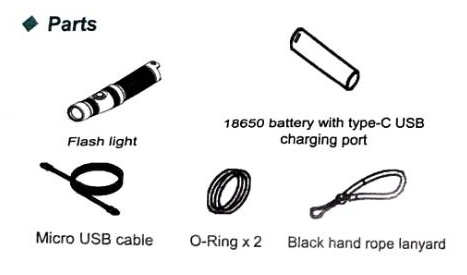

◆ Parts
- Flash light
- Micro USB cable
- 18650 battery with type-C USB charging port
- O-Ring x 2
- Black hand rope lanyard
◆ Specifications
- Type of Battery: 18650 Li-ion battery (3400mAh) Lithium Battery with Micro USB Charging Port
- Brightness: 1000 Lumens
- Six function modes:
Continuous light modes:
Maximum brightness (100%)
Medium brightness (50%)
Low brightness (25%)
Intermittent light modes: Blink/SOS/Strobe - Color Temperature: 6500 – 7000K
- Beam Angle: 15 degrees
- Burn time: 100 minutes at full power
- LED Life: Over 50,000 hours
- Depth Rating: 100m / 330ft
- Size: 30.5 mm (D) * 140 mm (L)
- Weight: 165g
◆ To turn to flash light ON/OFF
Turn ON: Turn the tail clockwise so that it is tight to the head. Press the ON/OFF button and hold it for one second located on the middle of the head. The default will be 100% brightness.
Turn OFF: Press the ON/OFF button and hold it down for two seconds.
To adjust brightness When the light is on:
Press and immediately release the ON/OFF button. (100% / 50% / 25%)
Turn on SOS:
When the light is off: Press the ON/OFF and hold it for three seconds.
Switch mode: (Blink/SOS/Strobe)
Switch mode: (Blink/SOS/Strobe)
When the light is in SOS mode Press and immediately release the ON/OFF button
Turn off SOS:
When the light is in SOS mode: Press the ON/OFF and hold it for two seconds.
◆ To install the battery
- Turn the tail cap counter-clockwise to open.
- Put the 18650 Lithium battery in the tail cap.
Note: Look at the label located on the inside of the tail cap, make sure to align the positive and negative ends of the battery with the positive and negative terminals on the tail. - Turn the tail cap clock wise to reattach the tail to the head of the flash light.
◆ To charge the battery
- To charge the battery with the type-C USB cable.
- The power can be able supplied by USB (5V Maximum 2A).
- When the battery begins to charge the indicator light on the battery will be RED.
- When the battery is fully charged the indicator on the battery will be BLUE.
◆ Thermal protection
When the inner temperature of flash light becomes too high the flash light will automatically decrease the brightness of the light.
◆ Battery level indicator
There are four colors to indicate the level of power left in the battery:
- When the indicator light is blue, the battery is fully charged.
- When the indicator light is green, the battery is approximately 50% charged.
- When the indicator light is red the battery charge is low.
- When the battery is very low / empty the indicator light will flash red and then the light will power-off.
◆ Battery stretch
When the battery level is low the flash light will automatically adjust the brightness (decrease) to conserve power. When the battery is empty then flash light will power-off.
◆ General maintenance
There are two O-rings in the tail cap. Use silicone to keep the O-rings well lubricated.
It is important to lubricate the O-rings if the flash light has not been used in a long time or if the O-ring is hard.
If the O-ring is damaged, broken or deformed it should be replaced with the spare.
NOTE: Do not use a sharp tool to remove the O-ring.
◆ Warnings
- Only use 18650 Lithium batteries provided by the manufacturer.
- Do not open the tail cap when the flash light is in the water.
- If the flash light will not be used for a long period of time the battery should be removed.
Failure to comply with these warnings may result in damage to the flash light and will nullify the warranty.
◆ Warranty
Kraken provides a warranty against manufacturer defects for 1 year starting from the date of purchase.
Manufacturer defects occurring within 15 days of the date of purchase will result in an exchange of product at the vendor.
All other manufacturer defects occurring within 1 year of date of purchase will be repaired at no cost.
Proof of purchase is required for warranty support.
The warranty does not cover failures or defects resulting from misuse (e.g. modification, damage) natural disasters, or battery issues, including incorrect battery installation.
◆ Trouble Shooting
Before returning the flash light to the vendor, please try the following to improve function.
Symptom | Solution |
---|---|
The flash light does not work | – Check the battery to make sure that it is inserted in the correct direction- Check the battery is charged- Check the tail cap is tight |
Internal Leakage Water | Check the O-Rings in the tail cap to make sure that they are not broken and that there is no debris which might prevent a proper seal |
